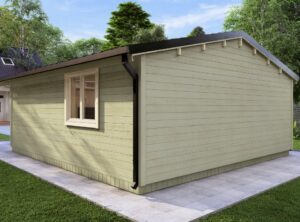

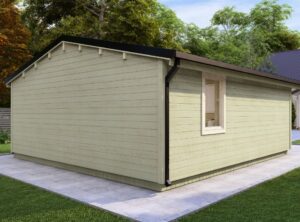

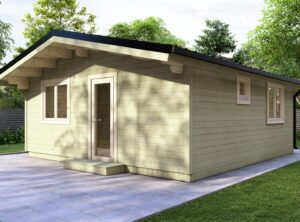

One Bed Type B 5.9m x 6.4m

19,740 18,000 inc. Vat

Built by our professional log cabin builders with years of experience in carpentry and log cabin building. 10 years structural warranty included for externally insulated log cabins and 2 years warranty for single skin log cabins.

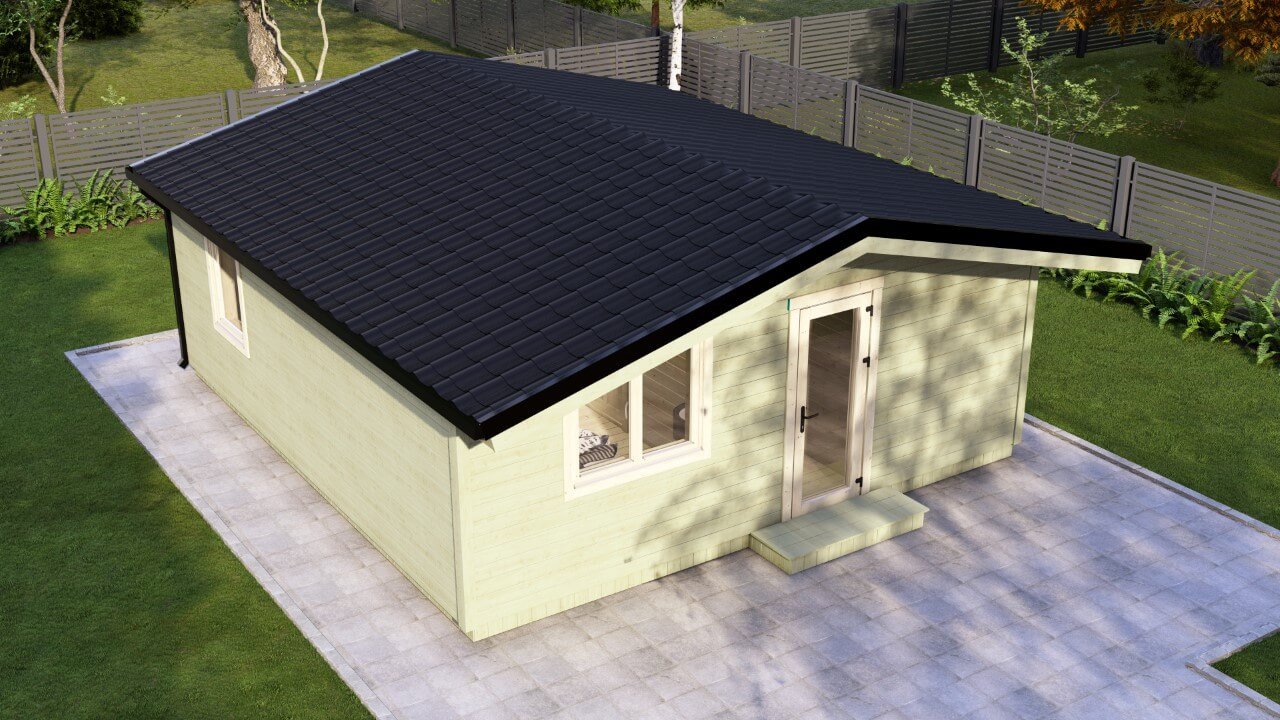

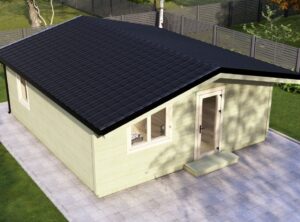

Our tile effect uPVC coated TATA steel roof (top of the range & scratch resistant) is a single piece of steel from ridge to gutter, no leaks and no maintenance. Some suppliers give the option of a shingle roof or poor quality steel tiles, this is a cheap option that will not last.

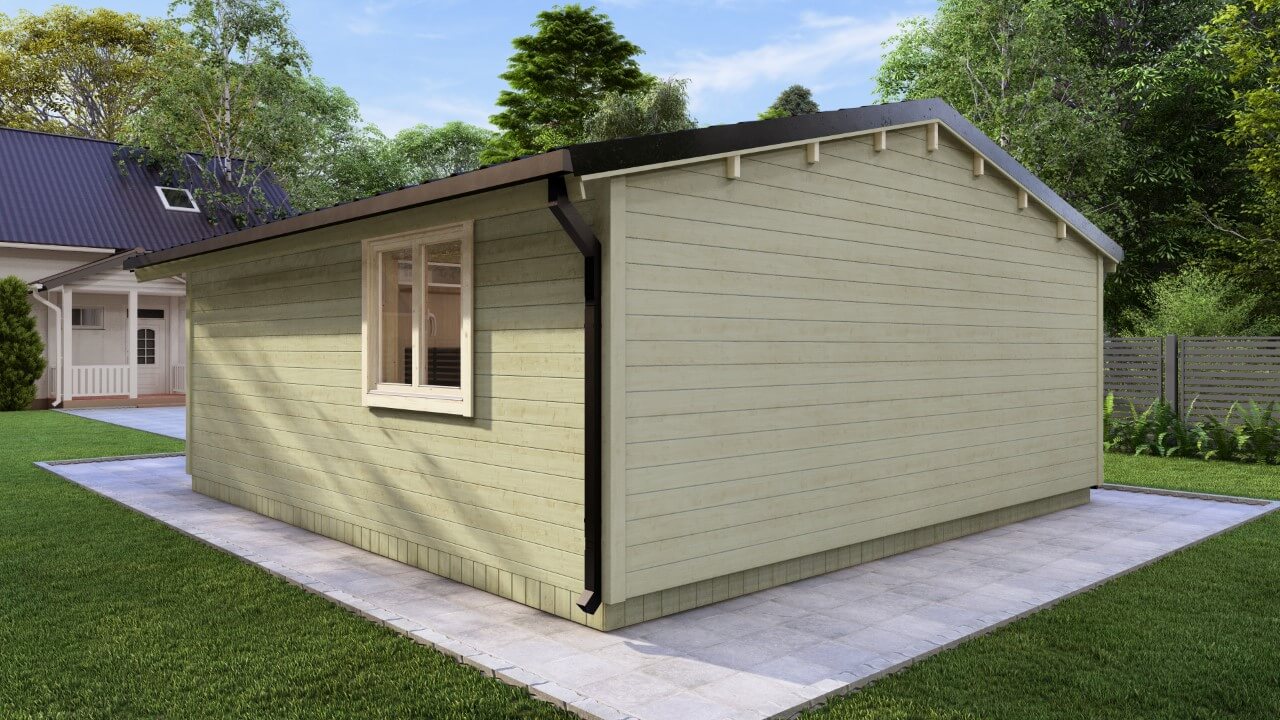

Gutters and downpipes are frequently overlooked, however they play a vital role in protecting the log cabin. If not removed, rainwater will fall down the sides of your log cabin and splash back directly under your log cabin log ends, resulting in the onset of rot. Gutters and downpipes take care of this, increasing the longevity and lowering the maintenance requirements. We include them across our range as a standard. We believe saving on mandatory pieces of your log cabin is not worth its longevity.

100mm Mineral-wool roof insulation. nearly 80% of heat loss can occur through the roof, with 100mm of roof insulation, your heat will retain for far longer, saving you money on your winter heating bills. It also keeps the building cooler during hot summer weather. Don’t take risks, do it right, do it once!

100mm Mineral-wool floor insulation is included as our standard for all residential log cabins.

Our premium 28mm floor boards are the thickest boards on the market! These thick boards makes floor sturdy & strong. You can comfortably put heavy load on them without bending.

Roof boards cladding is internally visible. 19mm is perfect cost & strength balance.

Its Irish LAW to have toughened safety glass if its below 800mm from the floor. All our glass doors & long windows are toughened safety glass (from both sides). Safety is first!

All our residential cabins have premium living type windows and doors. 24mm Argon gas filled double glazing with this frame and 5 point locking mechanisms is standard. To reduce the maintenance we recommend to upgrade to UPVC windows and doors. See options below.

Insulation is worthless unless its dry, all our cabins comes with breathable damp proof membranes.

Size 5.9 x 6.4m
Log Thickness 45mm
Floor Insulation 100mm
Roof Insulation 100mm
Wall Height 2.2m
Ridge Height 2.9m
Roof Boards 19mm
Floor Boards 28mm
Floor Bearers 45mm x 100mm
Windows 1 x Premium Double Window
3 x Premium Single Windows
Doors 1 x  Premium Single Door
2 x Internal Doors

Please expand and select product options below

Foundation type *

Client guarantees level foundation to our specifications. Please contact us to get specifications for your log cabin foundation.

This consists of a pressure treated timber frame, covered with damp proof membrane & mounted on stilts. These are positioned on concrete block pads, set in a meter grid formation and cemented in place to avoid lateral or vertical movement. A standard height step, the width of the door (or the opening of the veranda) and a cover up around the base are included. If located on a flat surface, the building will be raised approximately 20cm off the ground. If located on a slope, it may be raised higher, which can increase the cost.

Wall insulation *

Only advisable for storage units, not suitable for residential log cabins or home offices. Buildings with uninsulated walls are inefficient to heat and are not protected by pressure treated cladding, decreasing the longevity of the building. This results in increased heating & maintenance costs over the lifespan of the building. Uninsulated walls get only two years structural warranty.

External insulation consists of 100mm insulation + breathable damp proof membrane + 25mm ventilated facade + 19mm pressure treated ship-lap cladding. This the highest standard option, the structural wall is never exposed to the elements as the pressure treated cladding protects the building, increasing longevity and lowering maintenance costs. This comes with a ten-year structural warranty.

Painting *

Our professional painting contractor will perform following works on your cabin: 1. Remove window/door hardware, seals, and hinges 2. Remove gutters/downpipes and roof flashings to paint the cabin 3. Fill screw, nail holes on the windows/doors (architraves and frames) 4. Sand windows/doors fully 5. Apply caulk to open joints on the windows/doors including frames (only prior to painting, not staining) 6. Silicone seal open joints on the walls, facias, window and door frames (externally) 7. Spot prime knots with oil-based primer (only prior to painting, not staining) 8. Fill knots with linseed putty.

Our professional painting contractor will perform following works on your cabin: 1. Remove window/door hardware, seals, and hinges 2. Fill screw, nail holes on the windows/doors (architraves and frames) 3. Sand windows/doors fully 4. Apply caulk to open joints on the windows/doors including frames (only prior to painting, not staining) 5. Spot prime knots with oil-based primer (only prior to painting, not staining) 8. Fill knots with linseed putty

Bundle discount. Includes everything from external and internal.

Product price
inc. Vat
Additional options total:
inc. Vat
Order total:
inc. Vat
Featured Videos
One Bed Type B Log Cabin Video

Description

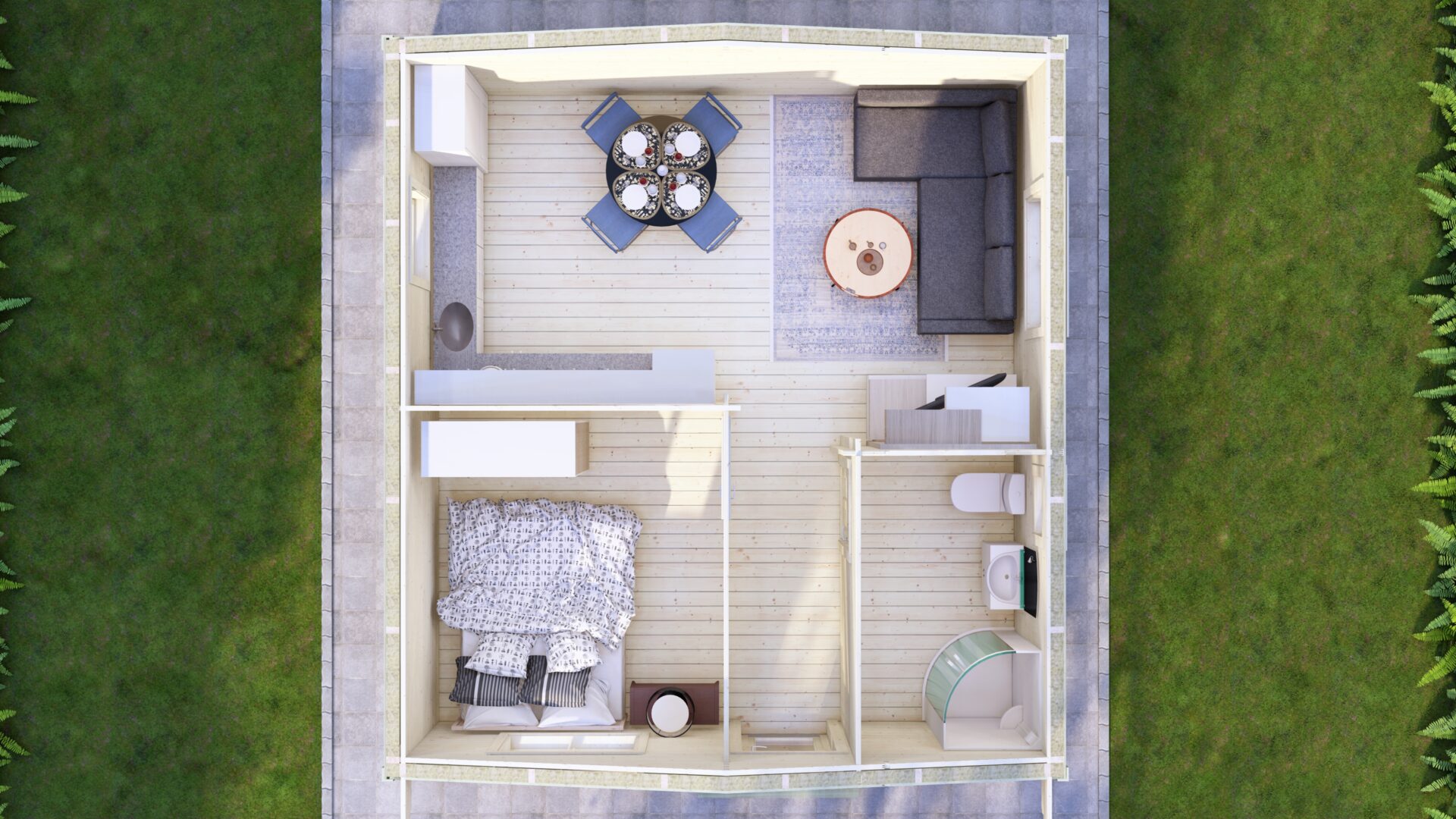

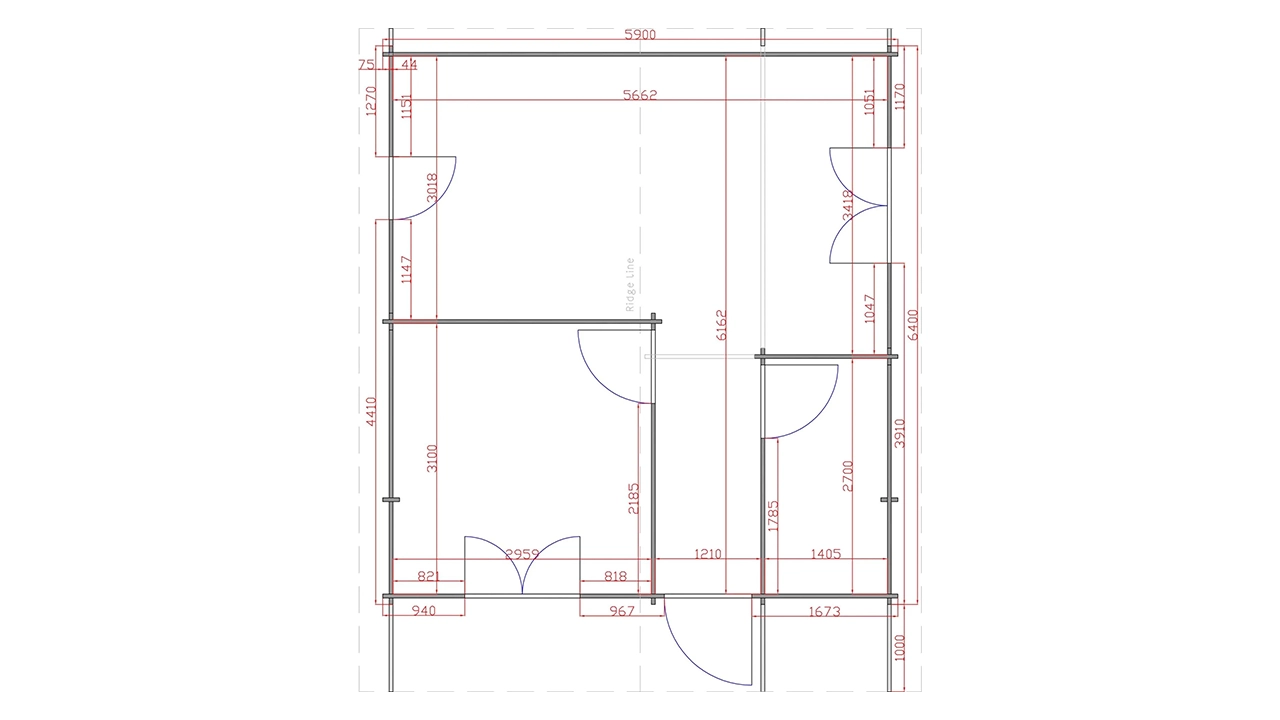

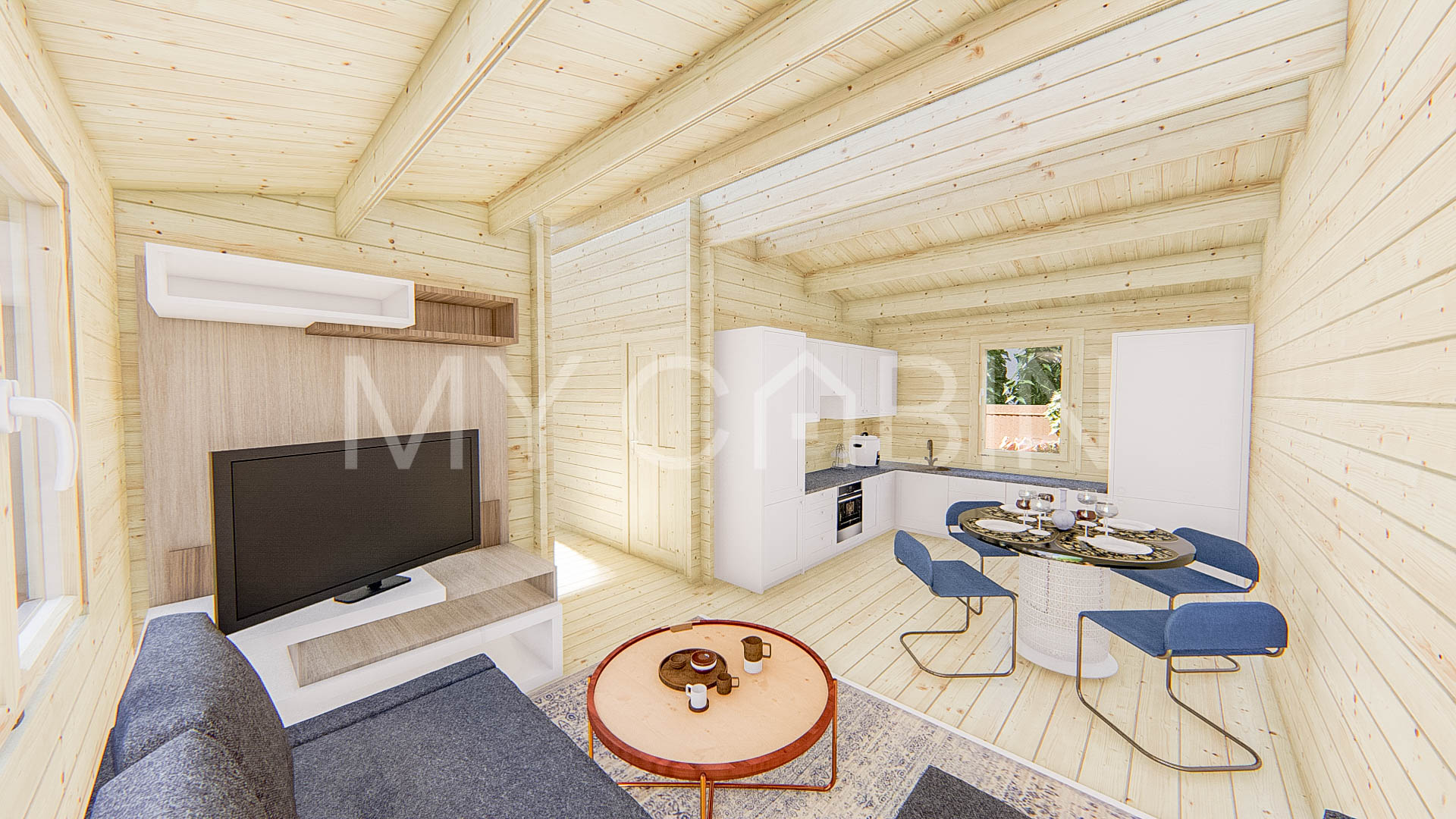

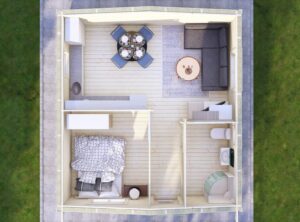

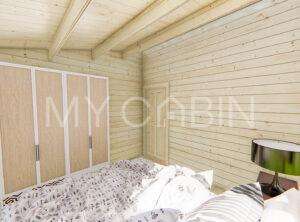

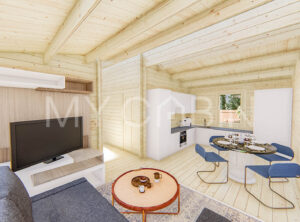

This one bed log cabin was designed by experts in small space living. The layout is cleverly made to utilize as much as possible from the given space. It can accommodate a full-sized kitchen, dining and living area in an open plan setting. It has a double bedroom with a generous sized bathroom. We also offer a full package with electrics, plumbing, with kitchen and bathroom units installed.

If you have any further queries or if this model is not exactly what you are looking for, we specialize in bespoke cabins and can create a cabin from your own custom design! Contact us today using the form below or call us on 01 564 1964, we look forward to helping you.

    Upload your log cabin sketch (optional):

    Additional information

    Width

    5.9m (19.4ft)

    Length

    6.4m (24ft)

    Log Thickness

    45mm (1.7in)
